Dust Collection
I’ve had a few dust collection setups in my shop, all with a shop vac only. I will probably keep my current setup until we buy a new house, as I feel it works effectively for my small shop.
This is all powered by a dust deputy attached to a small shopvac which is hidden up behind the wall for sound dampening. The clear pvc piping is 2.5” and is attached to 5 different blast gates. The blue hoses are attached to the blast gates and are spread around the workshop. I’ve purchased these components from Rockler, Woodcraft, as well as Amazon for some of the Powertech stuff.
If you’re looking to build or modify a dust collection setup, here’s a couple great resources before you begin
Stumpy Nubs has a great video on his YouTube for common dust collection mistakes.
Also, as Stumpy Nubs mentions, BillPentz.com also has a wealth of resources on dust collection systems.
first dust collector, video at the bottom of it in action
cannibalizing shop vac

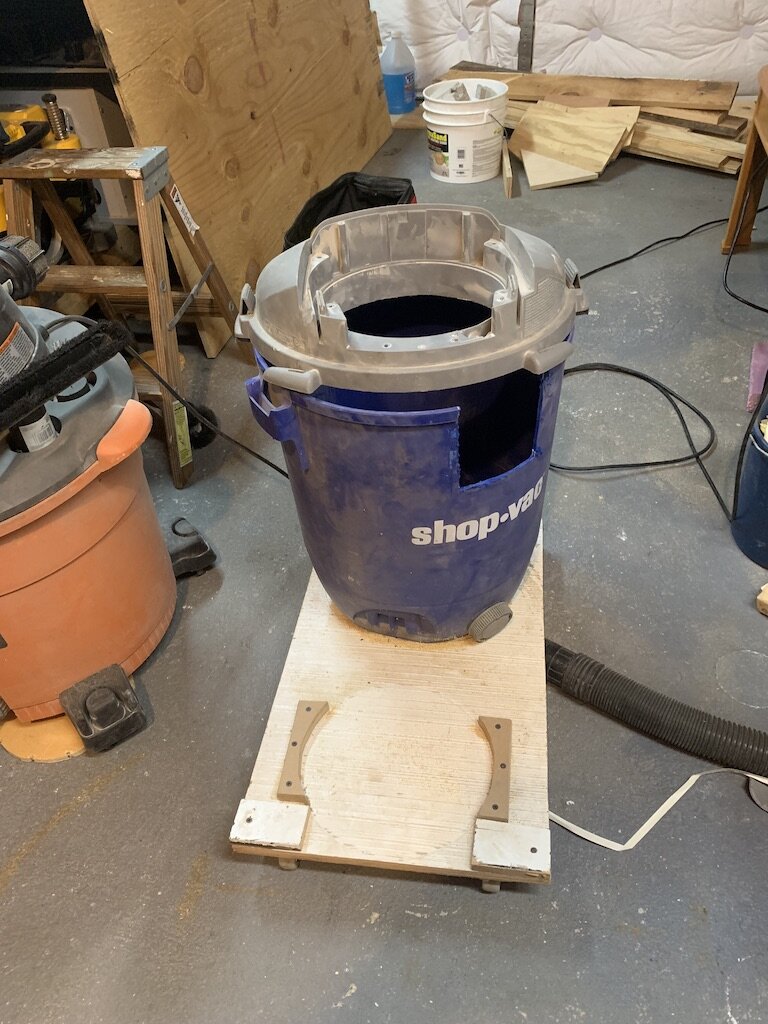

motor removed, to sit on top of bucket
mounted to the wall, then the motor died
the 2.5" pvc lines feed into the little dust deputy
the black hose goes to the vacuum behind the wall

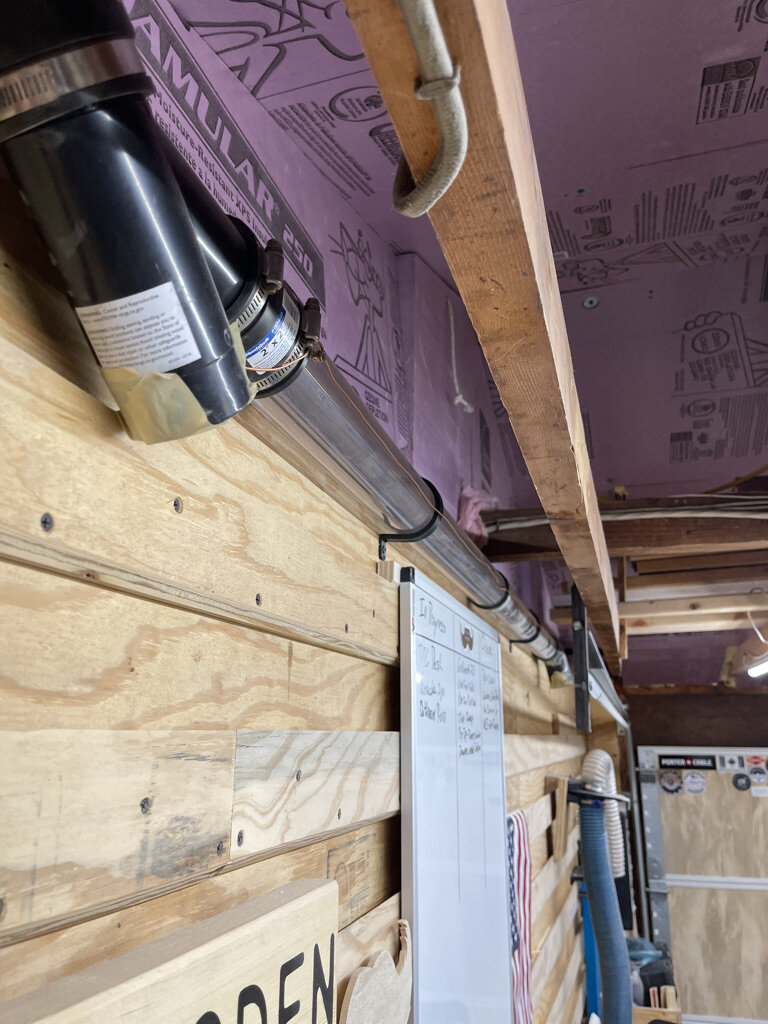

here's the other side of the shop with the pvc line running down
one of the Rockler blue hoses before the sheetrock was replaced with plywood
another view of the wall with the second hose in the back middle hanging
different view from the garage door
my weird dropdown hose
dropdown hose in use
dropdown "cage" locks up, out of the way
my original dust bucket
Here’s a crappy video of Mike and I’s first dust collector attempt. It did work surprisingly well!
